Custom Hinge

At Delson Hinge, we offer a wide variety of custom hinges in gauges from .025″ to .125″ thick. Custom hinges can be manufactured to a customer’s drawing or a Delson design.

These non-standard products are our specialty and Delson engineers are ready to modify designs and estimate costs for hinges tailored to your exact specifications. Use the RFQ form, send an attachment or fax your drawing to have Delson quote your custom hinge. When tooling is needed, Delson is equipped with a modern tool room to take your hinge from concept to finished part.

Military, marine and other specification grade hinges are manufactured at Delson Hinge.

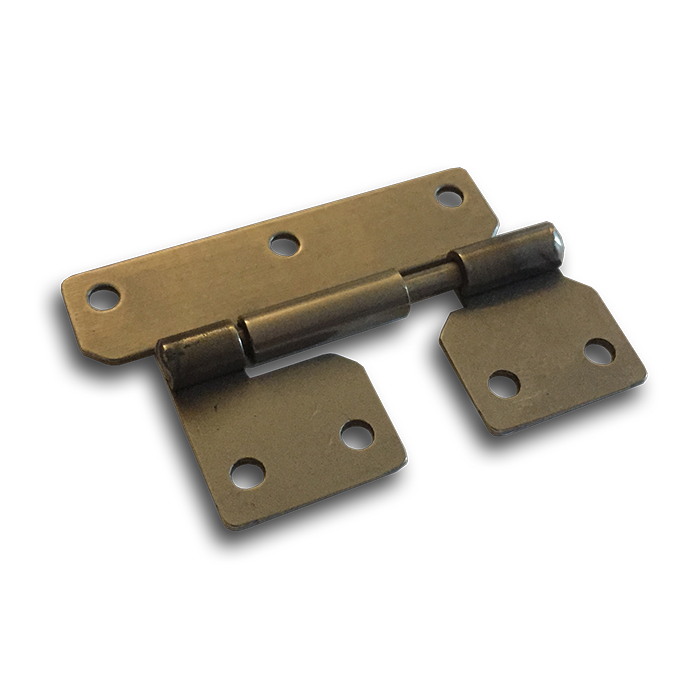

Custom Three Leaf Hinge Pierced with Welded Pin

Aluminum Custom Hinge Pierced, Unequal Leaves, Rivet Pin

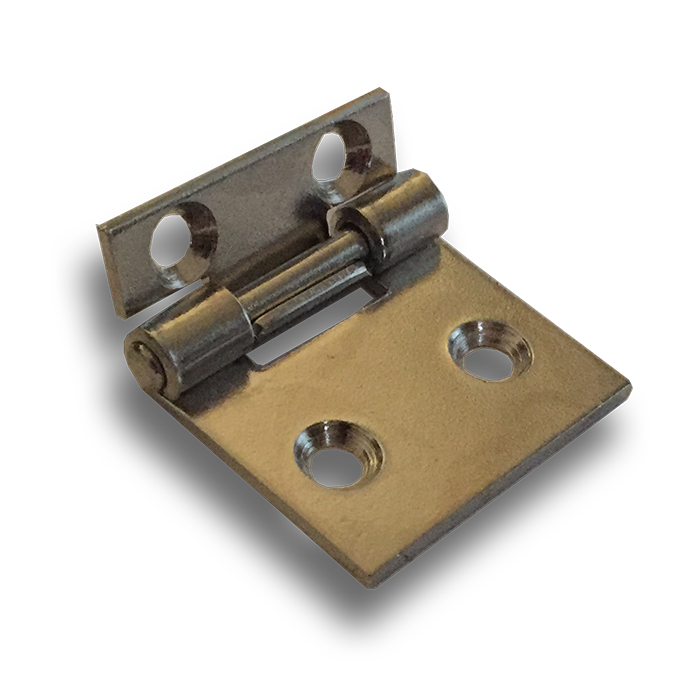

Chrome Plated 'Latch Hinge' Pierced, Countersunk Holes with Riveted Pin

Custom Slotted Steel Hinge Unassembled with Holes

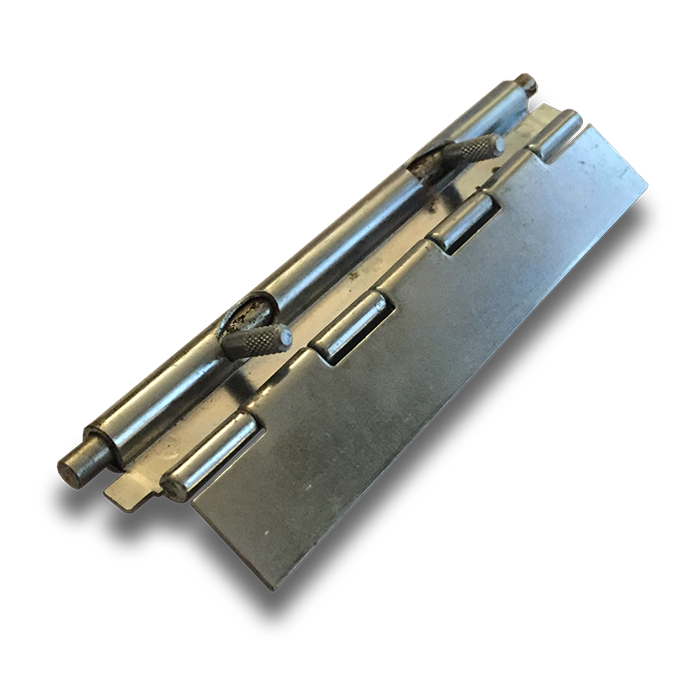

Custom Spring Loaded Latch Hinge with Knurled Pins, Zinc Plated

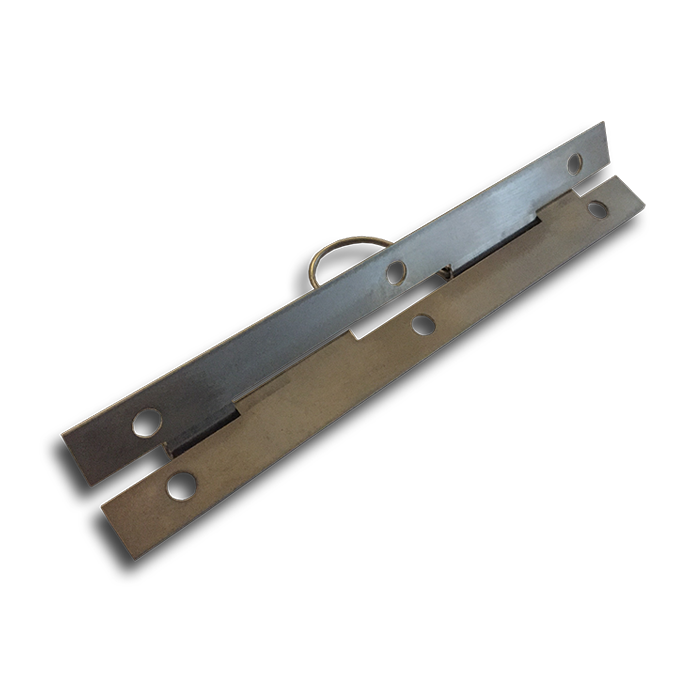

Custom Steel Hinge Pierced, Notched with Special Spring Pin

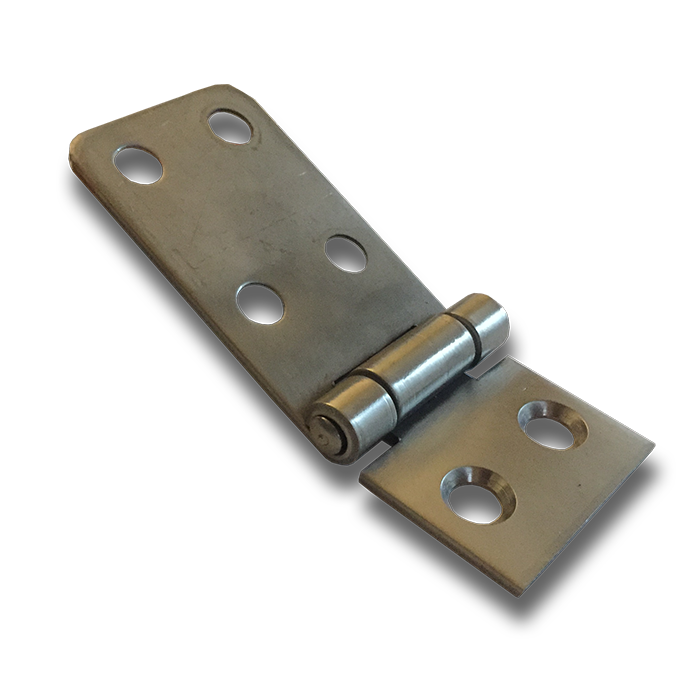

Polished Stainless Steel Pierced and Countersunk

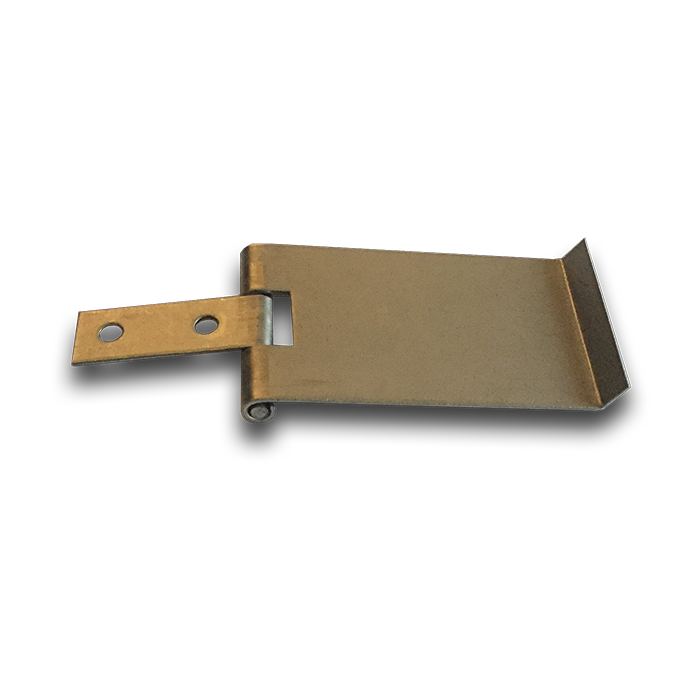

Stainless Steel Hinge Piereced, Formed with Fixed Pin

Black Oxide

❮
❯

Swaging Moving one or both leaves permanently in relation to the pin.



Assembly Styles You can specify an assembly style below, or leave blank (N/A).		Spring Loaded Describe any spring requirements.
N/A		N/A



Stop Features Describe any necessary stop features.		Leaf Forms Specify if a formed leaf is required.
N/A		N/A



Special Features Choose from any of the special features below.

Custom Hinge

Request a Quote

Contact Information

Material Specification

Quantity & Dimensions

Options

Slip
Hinge

Slip hinges are manufactured for take-apart applications, and are constructed in both left and right hand models.

Continuous
Hinge

Continuous hinges are made with two independent leaves, similar to butt type hinges but generally 6 inches or longer in length.

Butt
Hinge

Butt hinges are constructed as two independent leaves, typically under 6 inches in length.

Flag
Hinge

Flag hinges feature total swivel capability, allowing the slip portion of the hinge to travel a full 360° around the fixed portion of the pin.
