Continuous Hinge
Continuous hinges are made with two independent leaves. Generally they are 6 inches or longer in length but are otherwise similar to butt type hinges. With our extensive experience, we can provide custom hinges that meet a variety of industry specifications.
The hinge begins with a master coil of steel. The wide coil is cut on our cut to length line. After the blank has been cut, a knuckle is stamped into the steel before it is rolled to a centerline for each leaf. Holes are pierced according to print and pins are cut to match the hinge length. We produce this hinge in a variety of additional lengths and are capable of modifying many standard designs to create a custom hinge for a specific application.
The final hinge is assembled and the pin is welded to the hinge using a gas tungsten arc (TIG) welding process. The final assembly is painted according to military specifications. Dimensional tolerances on this hinge are held to as tight as ± 0.005″ at critical dimensions.
Military, marine and other specification grade hinges are manufactured at Delson Hinge.

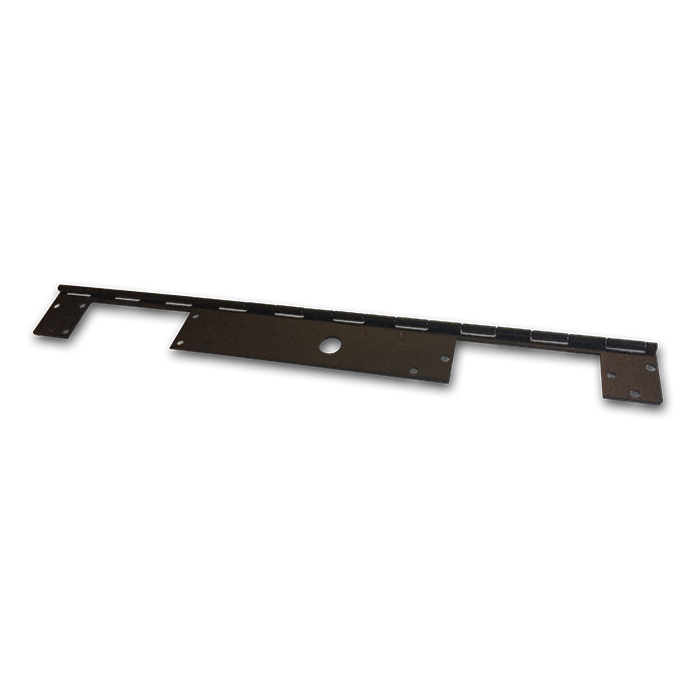

Continuous Hinge Pierced, Notched with Studs, Threading, Baked Enamel Paint
Continuous Hinge Piereced, Countersunk Holes with Closed Ends, Painted Enamel

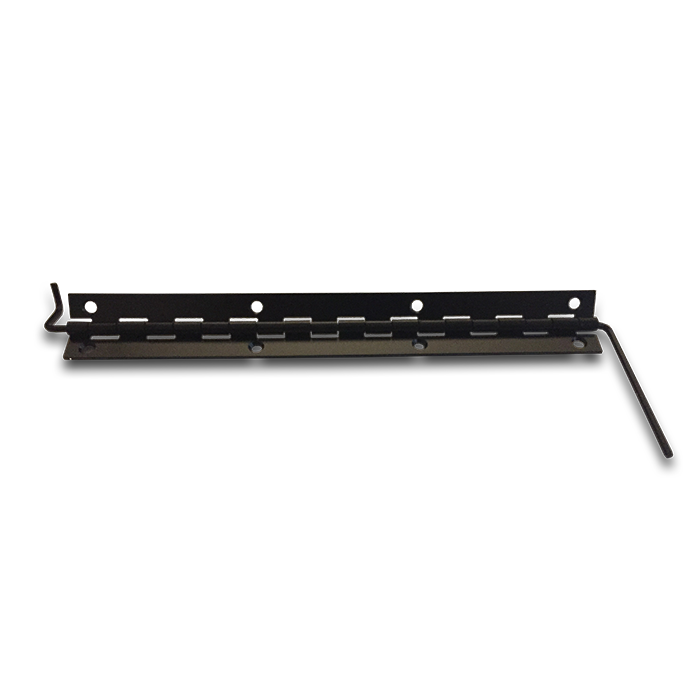

Continuous Hinge Piereced, Countersunk with Spring Pin, Black Paint

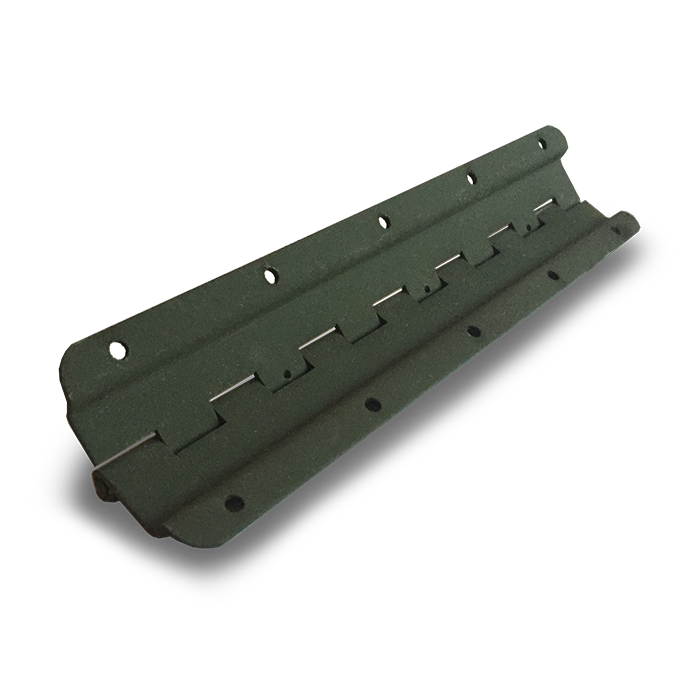

Custom Continuous Hinge Piereced, Formed with Military Spec. Paint, Textured Finish
Custom Continuous Hinge Piereced with Black Oxide Finish

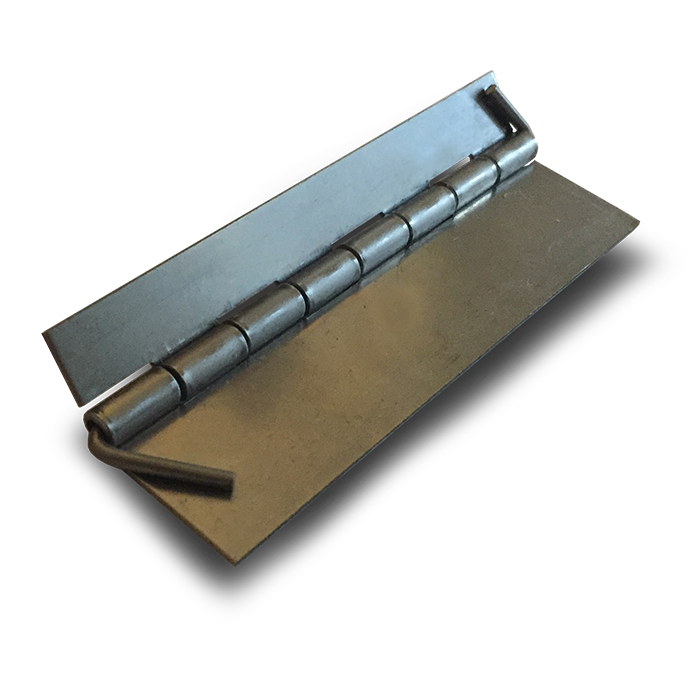

Custom Continuous Hinge with Unequal Leaves and 112° Stop Pin

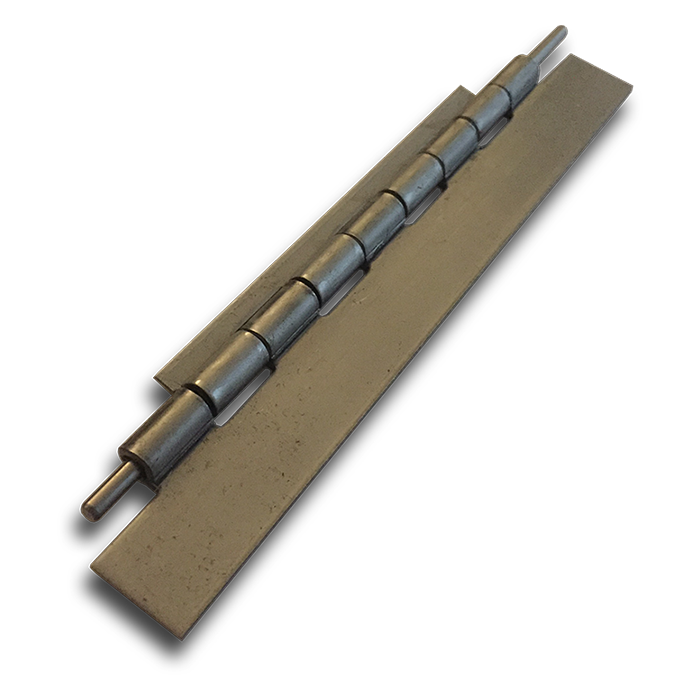

Custom Continuous Hinge with Unequal Leaves and Extended Pin Steel
❯
